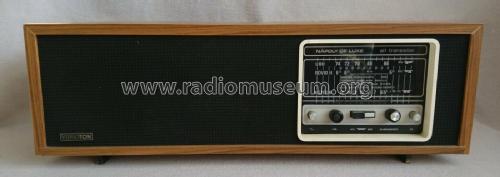

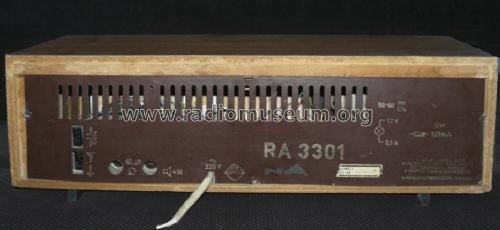

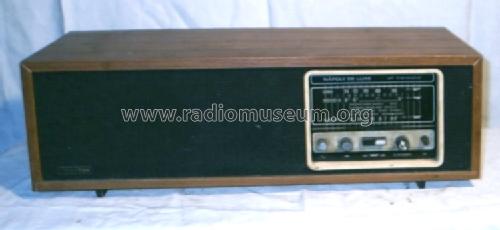

Napoly de Luxe RA3301

• Country
• Hungary

• Manufacturer / Brand
• Videoton; Székesfehérvár

• Year
• 1976/1977 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 98398

• • Brand: VTTV

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 6

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 465/10700 kHz

• Wave bands
• Broadcast, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 3 W (unknown quality)

• Material
• Various materials

• from Radiomuseum.org
• Model: Napoly de Luxe RA3301 - Videoton; Székesfehérvár

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 560 x 185 x 182 mm / 22 x 7.3 x 7.2 inch

• Notes
• ICs: TAA691, TBA810A. UKW-Bereich 65,8-77,5 MHz. KW-Bereich 5,95-6,3 MHz.

• Net weight (2.2 lb = 1 kg)
• 4.5 kg / 9 lb 14.6 oz (9.912 lb)

• Price in first year of sale
• 1,940.00 HUF

• Mentioned in
• Radio es Televizio Vevö keszülekek 1972-75

• Author
• Model page created by Karl Günther Goldsteiner. See "Data change" for further contributors.
