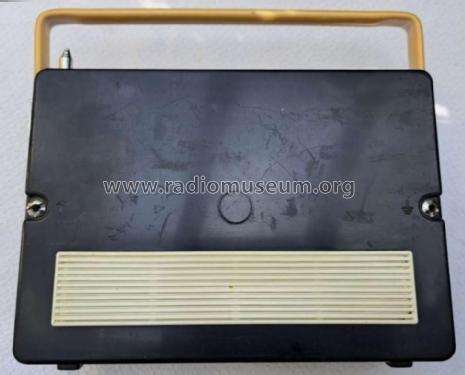

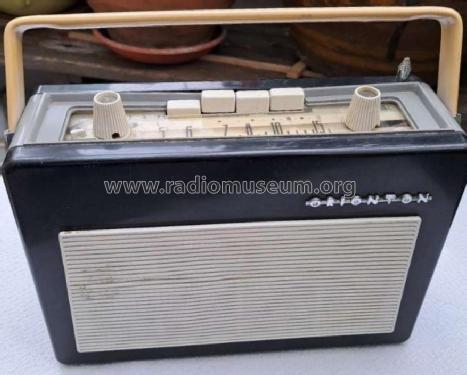

Orionton 1064
Videoton; Székesfehérvár
- Country
- Hungary
- Manufacturer / Brand
- Videoton; Székesfehérvár
- Year
- 1964–1966 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 336266
-
- Brand: VTTV
Source: Sándor Nagy, Hungary!
- Number of Transistors
- 7
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Tuned circuits
- 5 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Dry Batteries / 2 × 4,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
- Power out
- 0.5 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Orionton 1064 - Videoton; Székesfehérvár
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 240 x 180 x 80 mm / 9.4 x 7.1 x 3.1 inch
- Notes
-

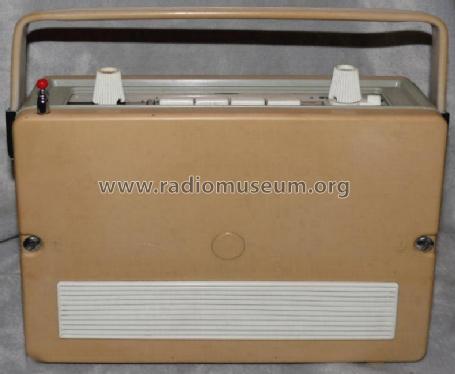

Predecessor producer Telefongyar, Terta TRT see Orionton BR-1064 - Telefongyar, Terta TRT
- Net weight (2.2 lb = 1 kg)
- 1.9 kg / 4 lb 3 oz (4.185 lb)
- Price in first year of sale
- 1,800.00 HUF
- Mentioned in
- -- Collector info (Sammler)
- Author
- Model page created by Wolfgang Bauer. See "Data change" for further contributors.
