• Country
• Hungary

• Manufacturer / Brand
• Videoton; Székesfehérvár

• Year
• 1973

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 101898

• • Brand: VTTV

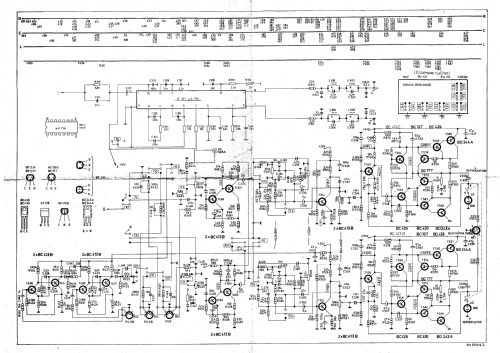

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 48

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, more than 2 SW bands plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 50 W (unknown quality)

• Material
• Various materials

• from Radiomuseum.org

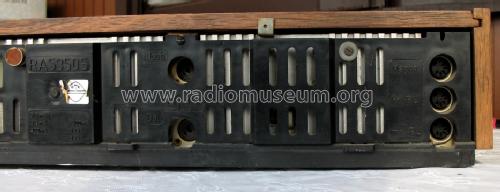

• Model: Prometheus RA5350S - Videoton; Székesfehérvár

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 570 x 100 x 300 mm / 22.4 x 3.9 x 11.8 inch

• Notes
• HiFi-Stereo-Empfänger, UKW: OIRT und CCIR-Norm, 2 x 25 Watt sinus, Übertragungsbereich 20...20000 Hz , AM-Lokalschalter, 5 Tasten für UKW-Vorwahlautomatik

• Net weight (2.2 lb = 1 kg)
• 10 kg / 22 lb 0.4 oz (22.026 lb)

• Price in first year of sale
• 12,500.00 HUF

• Source of data
• -- Collector info (Sammler)

• Mentioned in
• Kókai-Varsányi: Sztereo rádiók szervízkönyve, Budapest 1979.

• Literature/Schematics (1)
• Radio Fernsehen Elektronik 22/1973 Seite 317

• Author
• Model page created by Wolfgang Lill. See "Data change" for further contributors.
