• Country
• Hungary

• Manufacturer / Brand
• Videoton; Székesfehérvár

• Year
• 1974 ?

• Category
• Car Radio, perhaps also + sound player/recorder

• Radiomuseum.org ID
• 122905

• • Brand: VTTV

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 6

• Semiconductors
• BF224 BF224 2SC460 BF237 BF237 КТ315 TAA691 TBA810

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz

• Wave bands
• Broadcast, Short Wave plus FM or UHF.

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 3 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org

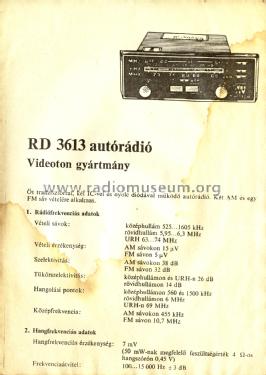

• Model: RD-3613 - Videoton; Székesfehérvár

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 150 x 95 x 39 mm / 5.9 x 3.7 x 1.5 inch

• Notes
• ICs: 2

• Net weight (2.2 lb = 1 kg)
• 0.8 kg / 1 lb 12.2 oz (1.762 lb)

• Literature/Schematics (1)
• Radio es Televizio Vevö keszülekek 1972-75

• Literature/Schematics (4)
• A Videoton története1938-1990, Budapest 2012

• Author
• Model page created by Sándor Selyem-Tóth. See "Data change" for further contributors.
