Speaker HC12/ 0814

Videoton; Székesfehérvár

Data

Forum

Pictures

Collections

Country
Hungary

Manufacturer / Brand
Videoton; Székesfehérvár

Year
1976 ?

Category
Loudspeaker, headphone or earphone

Radiomuseum.org ID
252082

- Brand: VTTV

Schematics

Speaker HC12/ 0814; Videoton; (ID = 1659181) Speaker-P — Videoton; Speaker HC12/ 0814 (2)

Speaker HC12/ 0814; Videoton; (ID = 1659183) Speaker-P — Videoton; Speaker HC12/ 0814 (2)

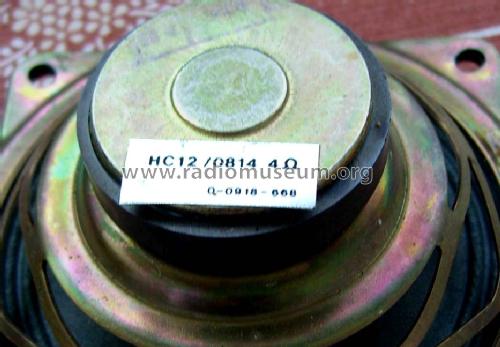

Speaker HC12/ 0814; Videoton; (ID = 1659186) Speaker-P — Videoton; Speaker HC12/ 0814 (2)

Speaker HC12/ 0814; Videoton; (ID = 1935786) Speaker-P — Videoton; Speaker HC12/ 0814 (2)

Speaker HC12/ 0814; Videoton; (ID = 1935790) Speaker-P — Videoton; Speaker HC12/ 0814 (2)

Speaker HC12/ 0814; Videoton; (ID = 1935791) Speaker-P — Videoton; Speaker HC12/ 0814 (2)

Speaker HC12/ 0814; Videoton; (ID = 1935793) Speaker-P — Videoton; Speaker HC12/ 0814 (2)

Speaker HC12/ 0814; Videoton; (ID = 3045349) Speaker-P — Videoton; Speaker HC12/ 0814 (1)

Speaker HC12/ 0814; Videoton; (ID = 3045350) Speaker-P — Videoton; Speaker HC12/ 0814 (1)

Technical Specifications

Wave bands
- without

Power type and voltage
No Power needed

Loudspeaker
Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 11 cm = 4.3 inch

Material
Metal case

from Radiomuseum.org
Model: Speaker HC12/ 0814 - Videoton; Székesfehérvár

Shape
Chassis only or for «building in»

Dimensions (WHD)
127 x 110 x 50 mm / 5 x 4.3 x 2 inch

Notes
4 Ohm.

Author
Model page created by Sándor Selyem-Tóth. See "Data change" for further contributors.
