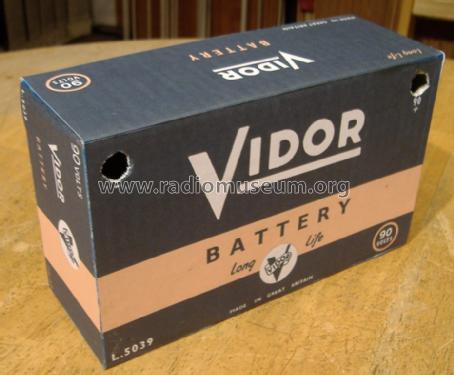

Radio H. T. Battery L5039
Vidor Ltd.; Erith (Kent)
- Country
- Great Britain (UK)
- Manufacturer / Brand
- Vidor Ltd.; Erith (Kent)
- Year
- 1937 ??
- Category
- Power supply/conditioner or battery or charger
- Radiomuseum.org ID
- 228106
- Wave bands
- - without
- Power type and voltage
- Is a battery or storage battery / 90 Volt
- Loudspeaker
- - - No sound reproduction output.
- from Radiomuseum.org
- Model: Radio H. T. Battery L5039 - Vidor Ltd.; Erith Kent
- Dimensions (WHD)
- 210 x 124 x 76 mm / 8.3 x 4.9 x 3 inch
- Notes
-
Contained 60 x Zinc Carbon "B" cells (U10) in series.
Connection is by a socket at each end and flying leads with small plugs for + and -
About 2500mAH, so over 250 Hours possible on Radio. Basically the HT part of an AD3
Post WWII used on Vidor CN420 "Regatta".
Equivalents
- GEC BB372
- Ever Ready Portable 61
- Others: H1146, 1340
