2-Way Speaker System BD-6070
Vieta Audio Electrónica S.A.; Barcelona
- Country
- Spain
- Manufacturer / Brand
- Vieta Audio Electrónica S.A.; Barcelona
- Year
- 1980 ??
- Category
- Loudspeaker, headphone or earphone
- Radiomuseum.org ID
- 273316

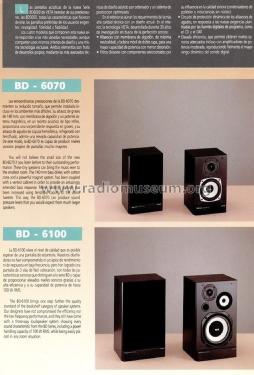

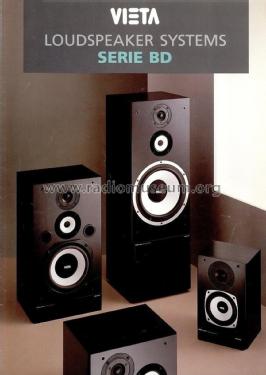

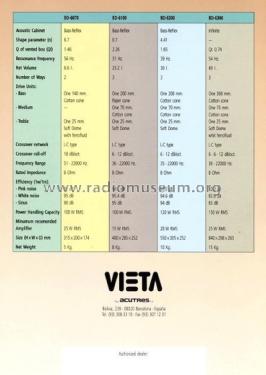

Vieta Flyer
Vieta Flyer
Vieta Flyer
Vieta Flyer
- Wave bands
- - without
- Power type and voltage
- No Power needed
- Loudspeaker
- 2 Loudspeakers
- Power out
- 100 W (undistorted)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 2-Way Speaker System BD-6070 - Vieta Audio Electrónica S.A.;
- Shape
- Book-shelf unit.
- Dimensions (WHD)
- 200 x 315 x 174 mm / 7.9 x 12.4 x 6.9 inch
- Notes
-
Vieta 2-Way 2-Speaker System Model BD-6070.
Power Handling 100 Watts RMS
Rated Impedance 8 Ohms
Resonance Frequency 56Hz
Frequency Range 51 - 22000Hz
CrossOver Network: L-C Type, 18dB/Oct.
Efficiency (dB/W/m):- 91dB (Pink Noise)
- 95dB (White Noise)
- 90dB (Sinus)
Netto Volume 6,6 liters
1x Woofer 140mm (Cotton Cone)
1x HighRange 25mm Soft Dome with ferrofluid
- Net weight (2.2 lb = 1 kg)
- 5 kg / 11 lb 0.2 oz (11.013 lb)
- Mentioned in
- -- Original prospect or advert (Vieta Flyer)
- Author
- Model page created by Franz Scharner. See "Data change" for further contributors.
