• Country
• Spain

• Manufacturer / Brand
• Vilor-Radio; Valencia

• Year
• 1954 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 317734

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 6SA7 6SK7 6SQ7GT 6V6GT 5Y3GT

• Main principle
• Superheterodyne (common); ZF/IF 490 kHz

• Tuned circuits
• 3 AM circuit(s)

• Wave bands
• Broadcast plus 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 100; 110; 125 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm

• Material
• Wooden case

• from Radiomuseum.org

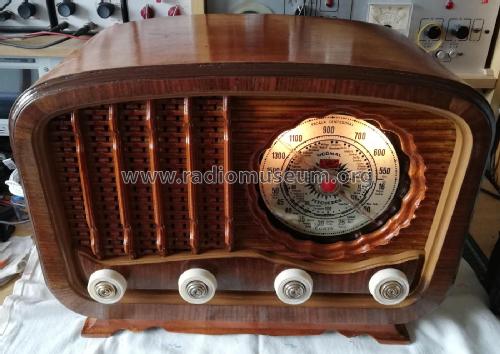

• Model: M-20 [Octal] - Vilor-Radio; Valencia

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 440 x 315 x 255 mm / 17.3 x 12.4 x 10 inch

• Notes

• Vilor Radio M-20 con válvulas octal.

  Véase modelo M-20 con válvulas Rimlock.

• Net weight (2.2 lb = 1 kg)
• 8.2 kg / 18 lb 1 oz (18.062 lb)

• Author
• Model page created by Alberto Sanna-Alonso. See "Data change" for further contributors.
