• Country
• Italy

• Manufacturer / Brand
• VIS Radio; Napoli, Torino

• Year
• 1950 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 213371

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• UCH41 UAF42 UAF42 UL41 EM4 UY41

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Alternating Current supply (AC) / 110; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 20 cm = 7.9 inch

• Material
• Wooden case

• from Radiomuseum.org

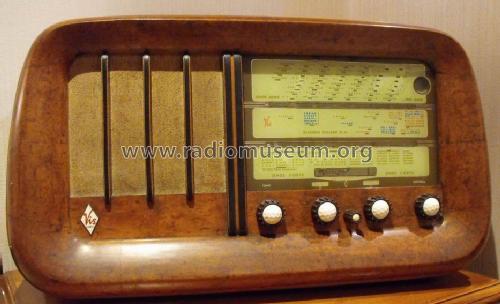

• Model: Super Manila - VIS Radio; Napoli, Torino

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 655 x 360 x 255 mm / 25.8 x 14.2 x 10 inch

• Notes
• See also VIS Manila without magic eye tube.

• Source of data
• - - Data from my own collection

• Author
• Model page created by Giuseppe Duello. See "Data change" for further contributors.
