Ten Transistor 1022
Viscount (Consolidated Merchandising Corp.); New York, NY
- Country
- United States of America (USA)
- Manufacturer / Brand
- Viscount (Consolidated Merchandising Corp.); New York, NY
- Year
- 1964 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 293771
Front view swiveled right

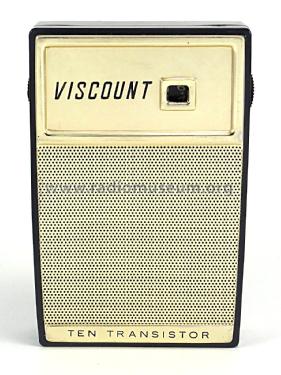

Frontal view
Front view swiveled left
Back view
Interior
Label
Sanyo transistors on PCB
- Number of Transistors
- 10
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Tuned circuits
- 5 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Dry Batteries / 1 x 9 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2.25 inch = 5.7 cm
- Power out
- 0.2 W (max.)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Ten Transistor 1022 - Viscount Consolidated
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 67 x 102 x 26 mm / 2.6 x 4 x 1 inch
- Notes
-
All Transistor Pocketable Radio Model Viscount 10 Transistor.
Frequency Range 540 - 1600 kHz
Earphone Jack
Carrying Leather case
Made in Okinawa.Model 1022. Civil Defense marks on station dial.
- Literature/Schematics (1)
- Photofact TSM Transistor Radio Series SAMS (TSM 59 (September, 1965) on pages 150-153)
- Author
- Model page created by Franz Scharner. See "Data change" for further contributors.
