• Country
• Germany

• Manufacturer / Brand
• Visonik; Hamburg

• Year
• 1980

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 145097

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Wave bands
• - without

• Details
• Record Player (not changer)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Various materials

• from Radiomuseum.org

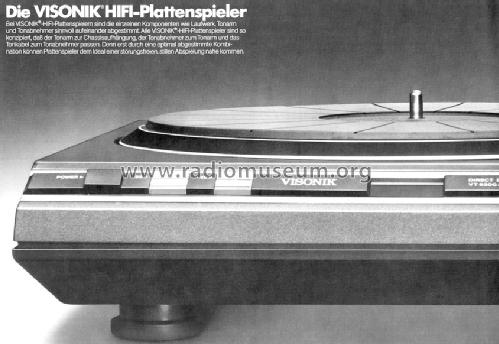

• Model: VT9300 - Visonik; Hamburg

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 450 x 138 x 385 mm / 17.7 x 5.4 x 15.2 inch

• Notes
• Direktgetriebener vollautomatischer Plattenspieler mit 2 Geschwindigkeiten (33 und 45 UpM). Endabschaltung, Tonarmrückführung und Drehzahlkontrolle durch Prismen-Stroboskop..
  Plattenteller Alu-Druckguss 320mm 1,8Kg.
  Tonabnehmer Ortofon VMS20EC MkII; 20-20000 Hz; hydraulisch gedämpfter Lift, Antiskatingeinstellung über Drehknopf.

• Net weight (2.2 lb = 1 kg)
• 10.5 kg / 23 lb 2 oz (23.128 lb)

• Source of data
• -- Original prospect or advert

• Author
• Model page created by Franz Scharner. See "Data change" for further contributors.
