• Country
• United States of America (USA)

• Manufacturer / Brand
• V-M (VM) (Voice of Music) Corporation; Benton Harbor (MI)

• Year
• 1959 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 149147

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 18

• Valves / Tubes
• 6CB6 12AT7 6AB4 6AU6 6BA6 6BE6 6BA6 6AU6 6AL5 12AX7 12AX7 12AX7 6V6GT 6V6GT 6V6GT 6V6GT 5U4GB 5Y3GT

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz

• Wave bands
• Broadcast (BC) and FM or UHF.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 110 - 120 Volt

• Loudspeaker
• 4 Loudspeakers

• from Radiomuseum.org

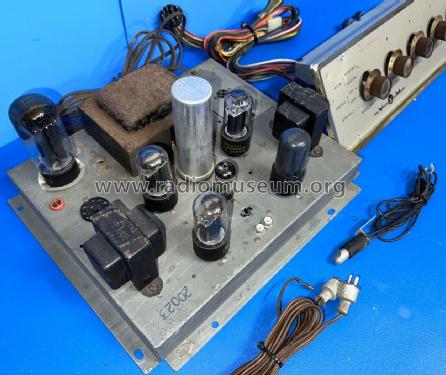

• Model: 812 - V-M VM Voice of Music

• Notes
• AC operated AM - FM tuner, stereo preamplifier, stereo amplifier and 4 speed automatic record changer. Sams photofact set 499 folder 17 date 9-60 features the VM Corp. models 812 and 912 as the same schematic.

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 499 folder 17 date 9-60)

• Author
• Model page created by Peter Hoddow. See "Data change" for further contributors.
