• Country
• United States of America (USA)

• Manufacturer / Brand
• V-M (VM) (Voice of Music) Corporation; Benton Harbor (MI)

• Year
• 1963 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 236051

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 12

• Valves / Tubes
• 6U8A 12AT7 6BE6 6BA6 6AU6 6AU6 6AL5 6AU6 12AU7 12AX7 EL84 EL84 NE-2

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 120 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Metal case

• from Radiomuseum.org

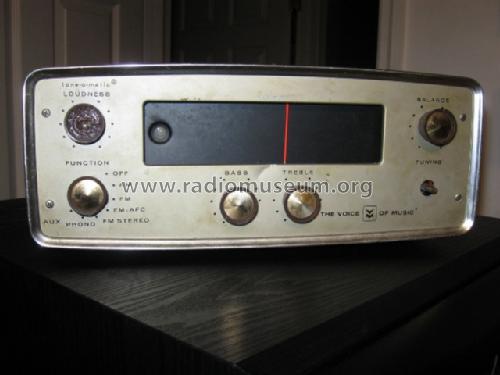

• Model: tone-o-matic VM 1467 - V-M VM Voice of Music

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 14 x 5 x 10 inch / 356 x 127 x 254 mm

• Notes

• The Voice Of Music model VM 1467 is an AM/FM-Mpx Stereo Receiver, with tone-o-matic.



• Net weight (2.2 lb = 1 kg)
• 18 lb 0 oz (18 lb) / 8.172 kg

• Literature/Schematics (1)

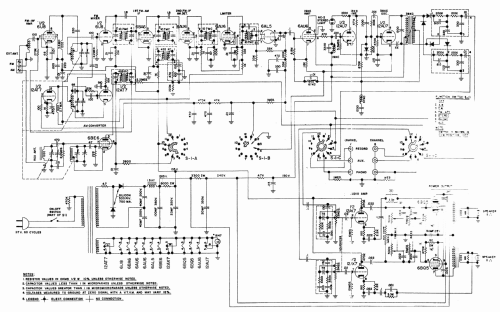

• -- Schematic

• Author
• Model page created by Michael Wilcox. See "Data change" for further contributors.
