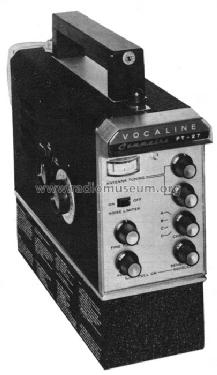

Commaire PT-27
Vocaline Company of America, Inc.; (CT)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Vocaline Company of America, Inc.; (CT)
- Year
- 1962 ?
- Category
- Citizen Band Equipment
- Radiomuseum.org ID
- 146682

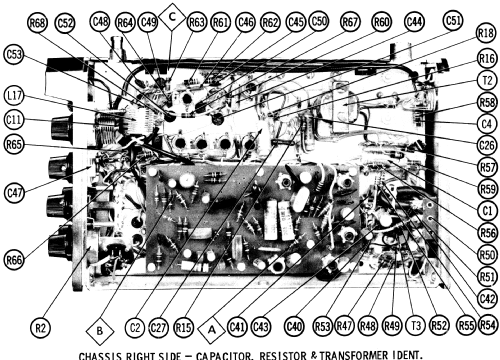

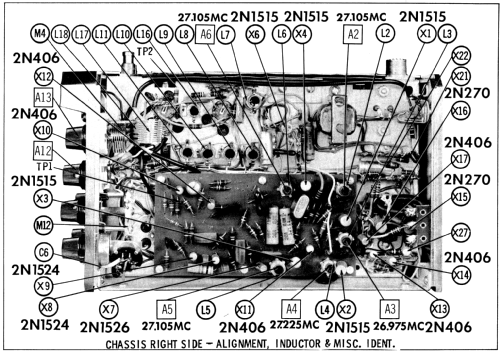

CB-Photofact Vol.3 Page 145
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 2
- Number of Transistors
- 18
- Main principle
- Superheterodyne (common)
- Wave bands
- Short Wave (SW only)
- Power type and voltage
- Line / Storage batteries (perhaps also batteries) / 110-120 / 15 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- from Radiomuseum.org
- Model: Commaire PT-27 - Vocaline Company of America,
- Shape
- Portable set > 8 inch (also usable without mains)
- Notes
- Any 4 of Channel 2 thru 23.
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (CB Vol.3 Folder 145)
- Author
- Model page created by Heribert Jung. See "Data change" for further contributors.
