• Country
• Italy

• Manufacturer / Brand
• La Voce del Padrone; Milano

• Year
• 1949/1950

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 101450

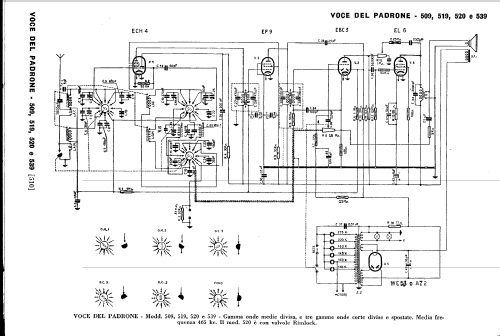

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• ECH4 EF9 EBC3 EL6 WE53 or AZ2

• Main principle
• Superheterodyne (common); ZF/IF 465 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast plus more than 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 110; 130; 145; 160; 220; 275 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 519 [late] - La Voce del Padrone; Milano

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 570 x 320 x 220 mm / 22.4 x 12.6 x 8.7 inch

• Notes

• Sintonia ad induttori variabili. Controllo di tono. Gamme d'onda: 2 medie e 3 corte. Varianti con valvole: ECH4 EF9 EBC3 EL41 AZ41.

  Wave bands: 2x BC, 3x SW. Alternate tube list: ECH4 EF9 EBC3 EL41 AZ41.



• Source of data
• Guida Pratica Antique Radio III (2000)

• Literature/Schematics (1)
• Schemi di apparecchi radio ( Ravalico 1953 ) (pag. 380)

• Author
• Model page created by Alessandro De Poi. See "Data change" for further contributors.
