• Country
• Italy

• Manufacturer / Brand
• La Voce del Padrone; Milano

• Year
• 1938/1939

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 30810

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• WE32 EF9 EBC3 WE30 WE53

• Main principle
• Superheterodyne (common); ZF/IF 465 kHz

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 110; 130; 160; 220; 275 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org

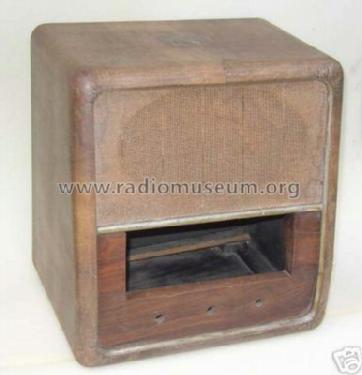

• Model: 545 - La Voce del Padrone; Milano

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Dimensions (WHD)
• 360 x 370 x 290 mm / 14.2 x 14.6 x 11.4 inch

• Notes

• Assorbimento: 60 Watt. Altoparlante elettrodinamico ellittico.

  Controllo di tono. Ingresso per giradischi.

  Esiste uno schema che riporta la finale audio WE35 anzichè la WE30, non intercambiabili in quanto la WE30 è un 5 pin, mentre la WE35 è a contatti laterali.

• Price in first year of sale
• 950.00 ITL

• Source of data
• Guida Pratica Antique Radio II (2000)

• Mentioned in
• D.E. Ravalico: Servizio Radiotecnico vol. II. Radioriparazioni. 8^ Edizione. Hoepli, Milano, 1952.

• Literature/Schematics (1)
• Il Radio Libro (E.D. Ravalico) Edizioni Hoepli (.)

• Literature/Schematics (2)
• -- Schematic (Schemario degli Apparecchi Radio. D.E. Ravalico – Hoepli – 1944.)

• Literature/Schematics (3)
• L'Antenna la Radio, numero 6, agosto 1941

• Author
• Model page created by Alessandro De Poi. See "Data change" for further contributors.
