• Country
• Italy

• Manufacturer / Brand
• La Voce del Padrone; Milano

• Year
• 1939/1940

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 127397

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• WE32 EF9 EBC3 EL6 EM1 WE53

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave and 2 x Short Wave.

• Power type and voltage
• Alternating Current supply (AC)

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 20 cm = 7.9 inch

• Power out
• 7 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

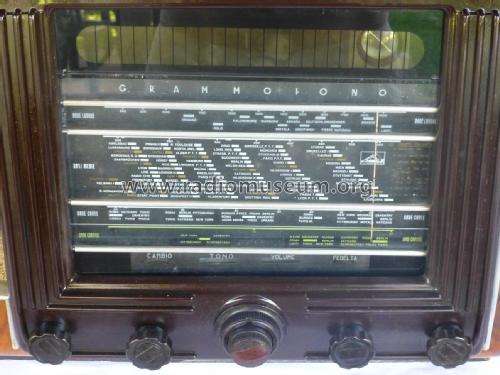

• Model: 553 - La Voce del Padrone; Milano

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 640 x 400 x 300 mm / 25.2 x 15.7 x 11.8 inch

• Notes

• Assorbimento: 70 Watt. Guida Pratica ARII elenca 5 valvole: WE32 EF9 EBC3 WE15 5Y3G.

  La targhetta di un altro apparecchio elenca: WE32 EF9 EBC3 WE15-EL3 5Y3G. Non è elencata la EM1 per evidenti motivi di spazio. Nello stesso apparecchio anzichè la EL3 è presente la EL3N.

• Net weight (2.2 lb = 1 kg)
• 21 kg / 46 lb 4.1 oz (46.256 lb)

• Source of data
• Guida Pratica Antique Radio II (2000)

• Literature/Schematics (1)
• -- Original-techn. papers. (D.E. Ravalico: Servizio Radiotecnico vol. II. Radioriparazioni. 8^ Edizione. Hoepli, Milano, 1952.)

• Author
• Model page created by Marco Gilardetti. See "Data change" for further contributors.
