- Country
- Italy
- Manufacturer / Brand
- La Voce del Padrone; Milano
- Year
- 1960 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 162226
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- Superheterodyne (common); ZF/IF 467/10700 kHz
- Wave bands
- Broadcast, Short Wave plus FM or UHF.
- Details
- Record Player (not changer)
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 140; 160; 220; 280 Volt
- Loudspeaker
- 2 Loudspeakers
- Power out
- 3 W (unknown quality)
- from Radiomuseum.org

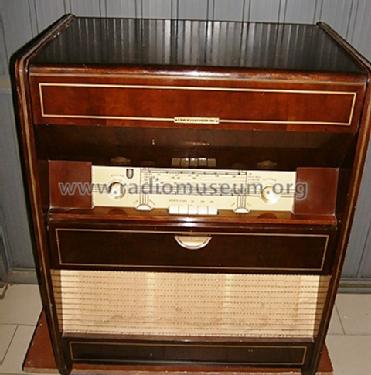

- Model: 638 - La Voce del Padrone; Milano
- Shape
- Tablemodel with Push Buttons.
- Notes
- Radiofonografo. Gamme d'onda:
Gamma OM da 560 a 190 mt;
Gamma OC da 75 a 25 mt;
Gamma OUC (FM) da 87 a 100 MHz.
Riproduzione sonora di tipo bifonico (cross over).
- Literature/Schematics (1)
- D.E.Ravalico, IL Radio Libro, 17° Edizione, 1960, Hoepli
- Author
- Model page created by Eduard Abfalterer. See "Data change" for further contributors.
