• Country
• Italy

• Manufacturer / Brand
• La Voce del Padrone; Milano

• Year
• 1936/1937

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 30797

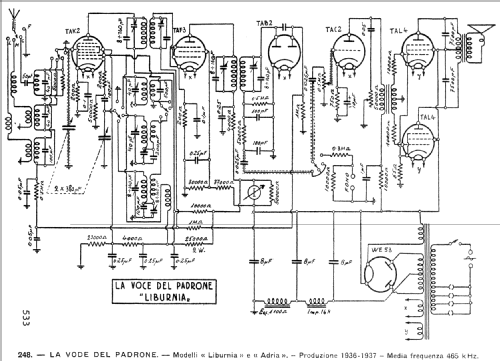

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• TAK2 TAF3 TAB2 TAC2 TAL4 TAL4 WE53

• Main principle
• Superheterodyne (common); ZF/IF 465 kHz

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Details
• Record Player (not changer); Visual Tuning Indicator pre Eye

• Power type and voltage
• Alternating Current supply (AC) / 110; 130; 160; 220; 275 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Liburnia - La Voce del Padrone; Milano

• Shape
• Console: Chairside Radio.

• Notes

• Indicatore di sintonia a proiezione d'ombra
  Ingresso per giradischi. Controllo di tono.

  ---

  Shadow tuning indicator.
  Phono input.

• Source of data
• Guida Pratica Antique Radio (1) 1999

• Literature/Schematics (1)
• Il Radio Libro (E.D. Ravalico) Edizioni Hoepli

• Literature/Schematics (2)
• -- Schematic (Il Manuale del Radiomeccanico G.B. Angeletti – Radio Industria – 1945)

• Literature/Schematics (3)
• Schemario di apparecchi radio a valvole (II edizione, D.E. Ravalico - Hoepli - 1945)

• Author
• Model page created by Alessandro De Poi. See "Data change" for further contributors.
