• Country
• Italy

• Manufacturer / Brand
• La Voce del Padrone; Milano

• Year
• 1939/1940

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 124895

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• WE43 6K7G 6K7G EBC3 AM2 WE38 WE38 5X4G or WE53

• Main principle
• Superheterodyne (common); ZF/IF 465 kHz

• Wave bands
• Broadcast, Long Wave and 2 x Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 100-275 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org

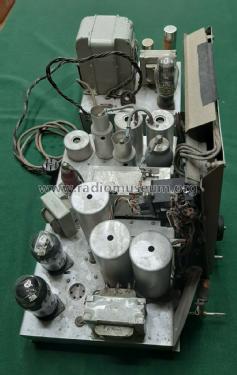

• Model: Marconi 1756 - La Voce del Padrone; Milano

• Shape
• Console with any shape - in general

• Notes

• La didascalia dello schema indica un modello 1756A con una piccolissima differenza: Il condensatore da 700 pFnel circuito del diodo rivelatore è stato sostituito con 2 condensatori in serie, il primo da 3.000 pF ed il secondo da 250 pF. Cortocircuitando quest'ultimo si ottiene una diversa "Fedeltà".

• Net weight (2.2 lb = 1 kg)
• 53 kg / 116 lb 11.8 oz (116.74 lb)

• Price in first year of sale
• 4,595.00 ITL

• Literature/Schematics (1)
• -- Original-techn. papers. (D.E. Ravalico: Servizio Radiotecnico vol. II. Radioriparazioni. 8^ Edizione. Hoepli, Milano, 1952.)

• Literature/Schematics (2)
• Il Radio Libro, (Ravalico) 6a edizione 1942

• Author
• Model page created by Giuseppe Antonio Tusini. See "Data change" for further contributors.
