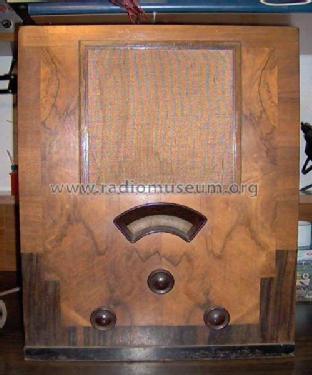

R5 Super
La Voce del Padrone; Milano
- Country
- Italy
- Manufacturer / Brand
- La Voce del Padrone; Milano
- Year
- 1933/1934
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 163083
1933 advertising
Click on the schematic thumbnail to request the schematic as a free document.

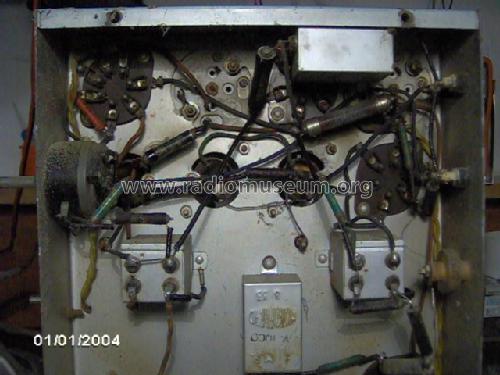

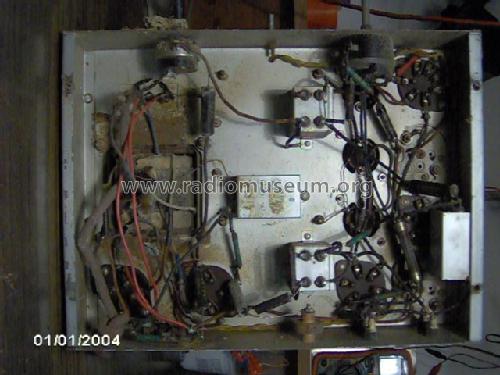

- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 175 kHz
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC) / 115; 130; 160; 220 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 23 cm = 9.1 inch
- Power out
- 3 W (undistorted)
- Material
- Wooden case
- from Radiomuseum.org
- Model: R5 Super - La Voce del Padrone; Milano
- Shape
- Tablemodel, high profile (upright - NOT Cathedral nor decorative).
- Dimensions (WHD)
- 370 x 480 x 270 mm / 14.6 x 18.9 x 10.6 inch
- Notes
-
Mobile differente dal modello R5.
Esiste versione con controllo automatico di volume, utilizzante valvola 2A6 anziché 57 (modello senza CAV). Secondo lo schema pubblicato in "Schemario degli Apparecchi Radio, IV Edizione, D.E. Ravalico", i due modelli avrebbero però lo stesso schema, probabilmente per errore della didascalia dello schemario.
- Net weight (2.2 lb = 1 kg)
- 14.2 kg / 31 lb 4.4 oz (31.278 lb)
- Price in first year of sale
- 1,250.00 ITL
- Source of data
- Guida Pratica Antique Radio II (2000)
- Author
- Model page created by Alessandro De Poi. See "Data change" for further contributors.
