Digitalvoltmeter ED4T
Völkner Electronic; Braunschweig
- Country
- Germany
- Manufacturer / Brand
- Völkner Electronic; Braunschweig
- Year
- 1971 ??
- Category
- Kit (Parts plus instruction) or building instructions only
- Radiomuseum.org ID
- 280868
Völkner DVM, Modell ED4T

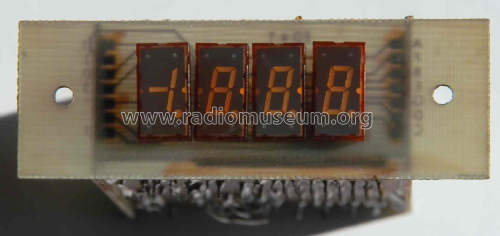

ED4T_Chassis nach Ausbau
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 6
- Semiconductors
- LD110 LD111 NE555 SN7404 SN7447 Z10 ZTK6,8 1N4148 BC109C BC109C BC179 BC179 BC179 BC179
- Wave bands
- - without
- Power type and voltage
- Powered by external power supply or a main unit. / DC: 5 & +12 & -12 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Printed Circuit Board
- from Radiomuseum.org
- Model: Digitalvoltmeter ED4T - Völkner Electronic;
- Shape
- Chassis only or for «building in»
- Notes
-
Völkner Digitalvoltmeter ED4T, mit 3,5 stelliger roter LED-Anzeige (ca. 8mm Ziffernhöhe), und dem AD-Wandler Schaltkreispaar LD110/LD111.
