• Country
• Germany

• Manufacturer / Brand
• Vollmer, Eberhard; Esslingen, Plochingen

• Year
• 1954–1956

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 22934

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• EF40 EF40 EF40 EL12 EL41 EZ40

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Tape Recorder

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - For headphones or amp.

• from Radiomuseum.org

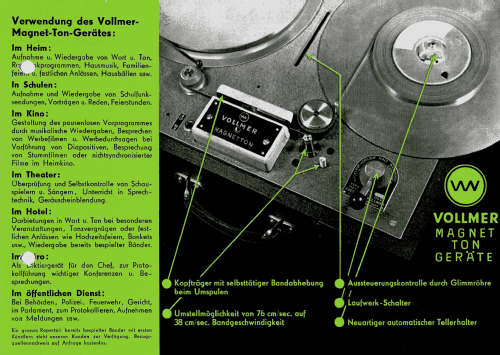

• Model: Tonbandgerät MTG9-54AWL [Koffer] - Vollmer, Eberhard; Esslingen,

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 276 x 545 x 355 mm / 10.9 x 21.5 x 14 inch

• Notes

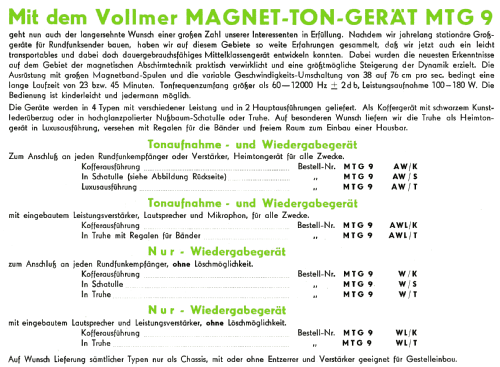

• Technische Daten wie MTG9-54AW, jedoch mit Leistungsverstärker.

• Net weight (2.2 lb = 1 kg)
• 26 kg / 57 lb 4.3 oz (57.269 lb)

• Price in first year of sale
• 1,785.00 DM

• External source of data
• Erb

• Source of data
• HdB d.Rdf-& Ferns-GrH 1954/55 / Radiokatalog Band 2, Ernst Erb

• Other Models

• Here you find 29 models, 26 with images and 17 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
