• Country
• Soviet Union

• Manufacturer / Brand
• Voronezh Elektrosignal Radio Works

• Year
• 1955

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 76199

Click on the schematic thumbnail to request the schematic as a free document.

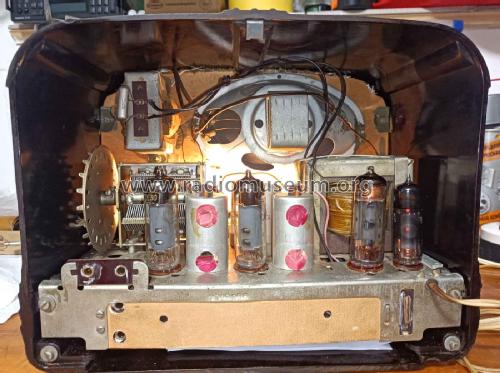

• Number of Tubes
• 4

• Valves / Tubes
• 6И1П 6И1П 6П14П 6Ц4П

• Number of Transistors

• Semiconductors
• Д2Д

• Main principle
• Superheterodyne (common); ZF/IF 465 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Alternating Current supply (AC) / 127; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 1 W (unknown quality)

• Material
• Bakelite case

• from Radiomuseum.org

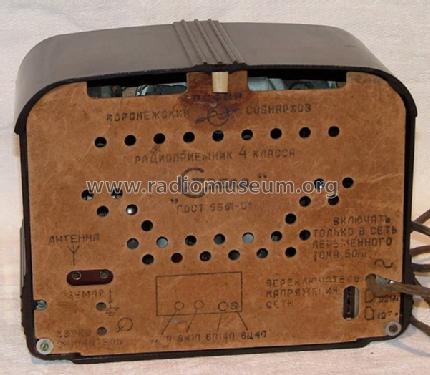

• Model: Strela {Стрела} - Voronezh Elektrosignal Radio

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 270 x 160 x 210 mm / 10.6 x 6.3 x 8.3 inch

• Net weight (2.2 lb = 1 kg)
• 4.2 kg / 9 lb 4 oz (9.251 lb)

• Mentioned in
• E.A.Levitin, Spravocnik po radiovesciatelnim prijomnikam, Moscow 1960

• Author
• Model page created by Zenonas Langaitis. See "Data change" for further contributors.
