Alpinist {Алпинист} 320

• Country
• Soviet Union

• Manufacturer / Brand
• Voronezh POLIUS Radio Works

• Year
• 1984

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 105976

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 11

• Semiconductors
• КТ315 КТ315 КТ361 КТ315 КТ315 КТ315 КТ361 КТ361 КТ814 КТ815 КТ815 КД521 Д814 КЦ405

• Main principle
• Superheterodyne (common); ZF/IF 465 kHz

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Line / Batteries (any type) / 220 / 2 x 4,5 or 6 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch

• Power out
• 1 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Alpinist {Алпинист} 320 - Voronezh POLIUS Radio Works

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 230 x 145 x 60 mm / 9.1 x 5.7 x 2.4 inch

• Notes

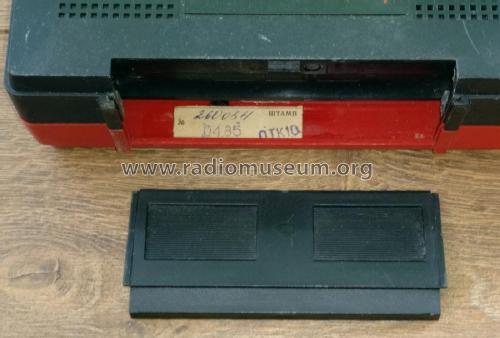

• Batteriebetrieb (9V) über 6 Stück LR14 (Babyzelle) oder 2 Stück 3LR12 (Flachbatterie) möglich; Gerätevariante mit eingebautem Netzteil für 220V AC, umschaltbar auf Batteriebetrieb mittels Schieber auf der Rückseite, Originalpreis dieser Variante: 40 Rubel

• Net weight (2.2 lb = 1 kg)
• 1 kg / 2 lb 3.2 oz (2.203 lb)

• Price in first year of sale
• 40.00 RUR

• Source of data
• - - Data from my own collection

• Author
• Model page created by Franz Scharner. See "Data change" for further contributors.
