• Country
• Soviet Union

• Manufacturer / Brand
• Voronezh Elektrosignal Radio Works

• Year
• 1938–1940

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 91269

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 11

• Valves / Tubes
• 6К7 6Л7 6Ж7 6К7 6Е5 6Х6 6Ф5 6Ф5 6Ф6 6Ф6 5Ц4С

• Main principle
• Superhet with RF-stage; ZF/IF 460 kHz

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and 2 x Short Wave.

• Details

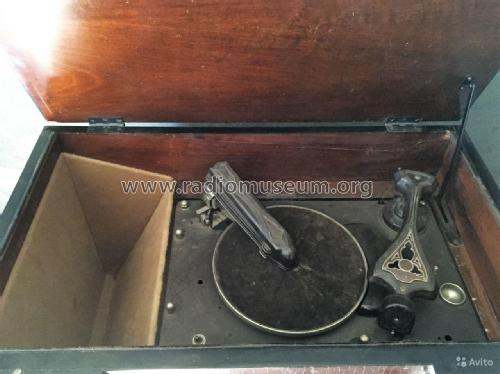

• Record Player (perh.Changer)

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 220 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Power out
• 10 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

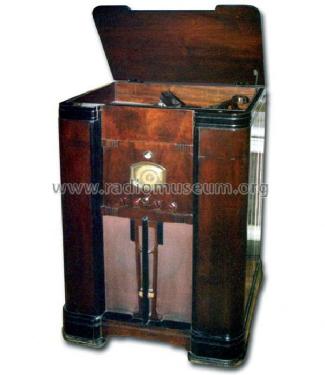

• Model: D-11 {Д-11} - Voronezh Elektrosignal Radio

• Shape
• Tablemodel, low profile (big size).

• Notes
• Several records automatic change possibility in record player.
  Two model names used. Analog of the radiogramophone model - 11MG-2 (see in RMorg).

• Net weight (2.2 lb = 1 kg)
• 77 kg / 169 lb 9.7 oz (169.604 lb)
