• Country
• Soviet Union

• Manufacturer / Brand
• Voronezh POLIUS Radio Works

• Year
• 1956

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 80521

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• 1А1П 1К1П 1Б1П 2П1П

• Main principle
• Superheterodyne (common); ZF/IF 465 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Dry Batteries / 1,2/9/90 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 1 W (unknown quality)

• Material
• Bakelite case

• from Radiomuseum.org

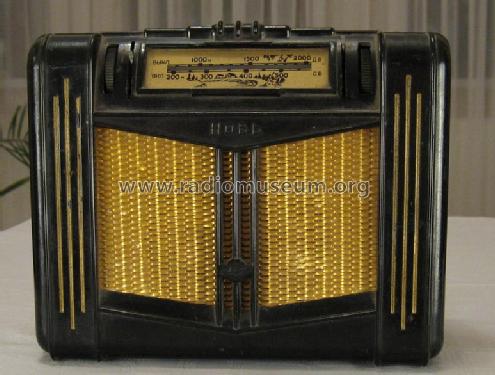

• Model: Nov' {Новь} - Voronezh POLIUS Radio Works

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 250 x 210 x 115 mm / 9.8 x 8.3 x 4.5 inch

• Notes

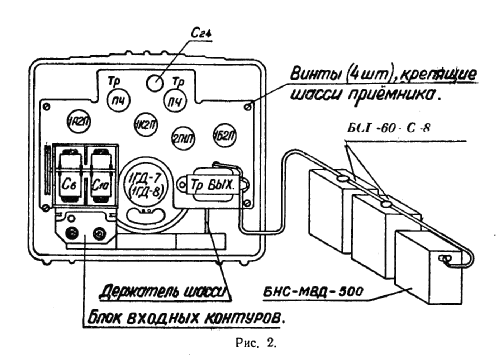

• Used battery type "Energija" 54ASMC-5P (or BSG-60-S-8) and "Ekran" 1,28NVMC-525-P (or BNS-MVD-500).

• Net weight (2.2 lb = 1 kg)
• 2.7 kg / 5 lb 15.2 oz (5.947 lb)

• Mentioned in
• E.A.Levitin, Spravocnik po radiovesciatelnym prijomnikam, Moscow 1960

• Author
• Model page created by Zenonas Langaitis. See "Data change" for further contributors.
