Mercury T315
Voxson, FARET (F.A.R.E.T.); Roma
- Country
- Italy
- Manufacturer / Brand
- Voxson, FARET (F.A.R.E.T.); Roma
- Year
- 1965 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 206975
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 21
- Valves / Tubes
- EF183 EF183 EF184 PL84 12AU7 PCL85 PL84 PABC80 EF80 ECC82 EF80 PC86 PC86 PCC88 9EA8 PC97 9CG8A 25DQ6 PY88 1G3GT 23BCP4
- Main principle
- Superheterodyne (common); ZF/IF 45750/40250 kHz
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Material
- Wooden case
- from Radiomuseum.org
- Model: Mercury T315 - Voxson, FARET F.A.R.E.T.; Roma
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 730 x 510 x 430 mm / 28.7 x 20.1 x 16.9 inch
- Notes
- Cinescopio da 23" con deflessione a 110° e focalizzazione elettrostatica.
Gruppo sintonizzatore per la ricezione dei canali VHF a 13 posizioni.

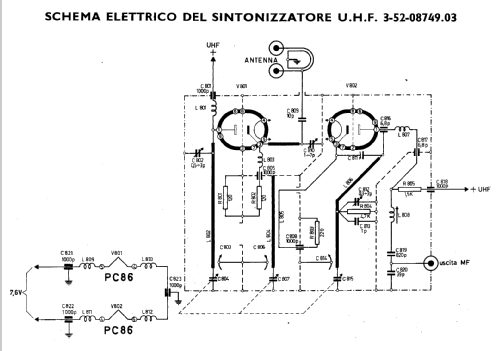

Gruppo sintonizzatore a due valvole per la ricezione della gamma UHF.
- Net weight (2.2 lb = 1 kg)
- 33 kg / 72 lb 11 oz (72.687 lb)
- Author
- Model page created by Eduard Abfalterer. See "Data change" for further contributors.
