Sonar 1008
Voxson, FARET (F.A.R.E.T.); Roma
- Country
- Italy
- Manufacturer / Brand
- Voxson, FARET (F.A.R.E.T.); Roma
- Year
- 1973
- Category
- Car Radio, perhaps also + sound player/recorder
- Radiomuseum.org ID
- 247380
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast (MW) and Long Wave.
- Details
- Cassette-Recorder or -Player
- Power type and voltage
- Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 14 W (undistorted)
- Material
- Metal case
- from Radiomuseum.org
- Model: Sonar 1008 - Voxson, FARET F.A.R.E.T.; Roma
- Shape
- Chassis only or for «building in»
- Notes
-

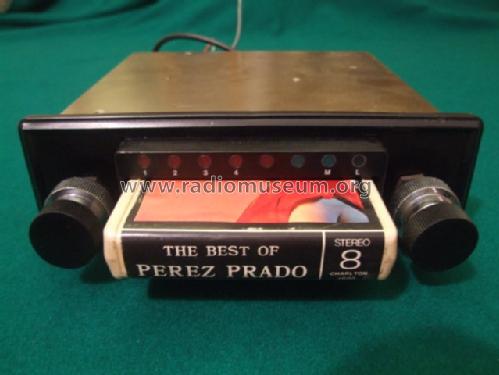

Voxson Sonar 1008 "a tasti". Autoradio giranastri Stereo 8 con sintonia a tastiera.
È in grado di ricevere i segnali radio di Onde Medie e Onde Lunghe e di riprodurre le cartucce Stereo 8. Il cambio delle tracce è automatico, alla fine di ognuna delle quattro tracce, ma può anche essere forzato manualmente con un comando meccanico che si aziona spingendo la manopola destra. La potenza di uscita è di (7 + 7) watt su altoparlanti da 4 ohm. Regolatori di tono e bilanciamento.
- Author
- Model page created by Gabriele Fanelli. See "Data change" for further contributors.
