• Country
• Italy

• Manufacturer / Brand
• Voxson, FARET (F.A.R.E.T.); Roma

• Year
• 1970 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 231232

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 43

• Semiconductors
• 2N3055 2N3055 2N3055 2N3055

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 140; 160; 220; 240 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 70 W (max.)

• Material
• Wooden case

• from Radiomuseum.org

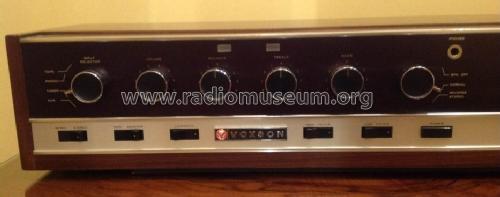

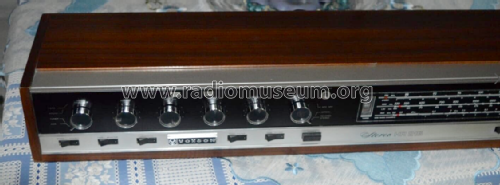

• Model: Stereo HR 216 - Voxson, FARET F.A.R.E.T.; Roma

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 780 x 125 x 200 mm / 30.7 x 4.9 x 7.9 inch

• Net weight (2.2 lb = 1 kg)
• 10.4 kg / 22 lb 14.5 oz (22.907 lb)

• Literature/Schematics (1)
• -- Schematic

• Author
• Model page created by Marco Boiardi. See "Data change" for further contributors.
