• Country
• Italy

• Manufacturer / Brand
• Voxson, FARET (F.A.R.E.T.); Roma

• Year
• 1961

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 186938

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 6

• Semiconductors
• AF170 AF169 AF170 OC75 OC74 OC74

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 19 cm = 7.5 inch

• Power out
• 0.5 W (unknown quality)

• Material
• Bakelite or Plastics (type unknown)

• from Radiomuseum.org

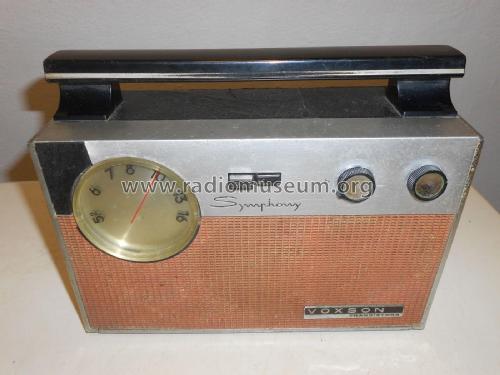

• Model: Symphony 753 - Voxson, FARET F.A.R.E.T.; Roma

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 285 x 230 x 100 mm / 11.2 x 9.1 x 3.9 inch

• Net weight (2.2 lb = 1 kg)
• 2.675 kg / 5 lb 14.3 oz (5.892 lb)

• Source of data
• - - Data from my own collection

• Mentioned in
• Antique Radio Magazine - Italy, Club Antique Radio Magazine (n.162, luglio-agosto 2021, pag. 16-21)

• Author
• Model page created by Antonio Fautilli. See "Data change" for further contributors.
