• Country
• Italy

• Manufacturer / Brand
• Voxson, FARET (F.A.R.E.T.); Roma

• Year
• 1970

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 220542

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes
• A31-20W

• Number of Transistors
• 27

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Line / Batteries (any type) / 125; 220 / 12 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: T1201 Ch= NT696/a - Voxson, FARET F.A.R.E.T.; Roma

• Shape
• Miscellaneous shapes - described under notes.

• Dimensions (WHD)
• 310 x 270 x 300 mm / 12.2 x 10.6 x 11.8 inch

• Notes
• È presente un integrato TAA611/B.

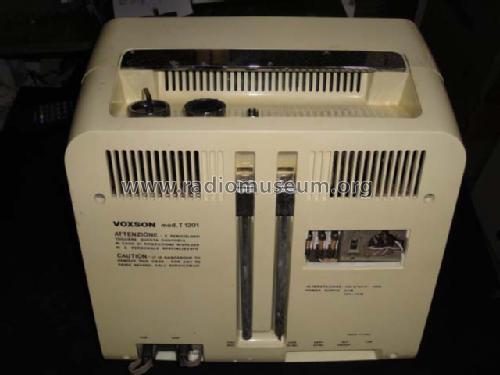

  Portatile con maniglia, profilo a forma di trapezio.
  Design Bonetto.


• Net weight (2.2 lb = 1 kg)
• 9.4 kg / 20 lb 11.3 oz (20.705 lb)

• Circuit diagram reference
• Schemario TV , Il Rostro

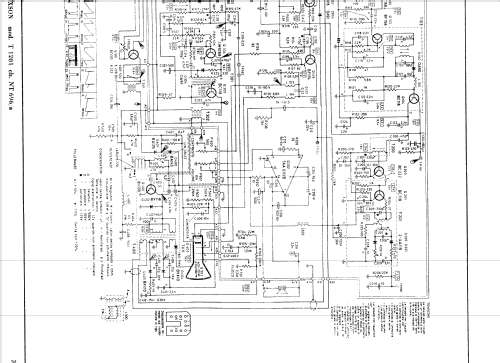

• Literature/Schematics (4)
• -- Schematic

• Author
• Model page created by Raffaele Pedrini. See "Data change" for further contributors.
