• Country
• Italy

• Manufacturer / Brand
• Voxson, FARET (F.A.R.E.T.); Roma

• Year
• 1964 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 208702

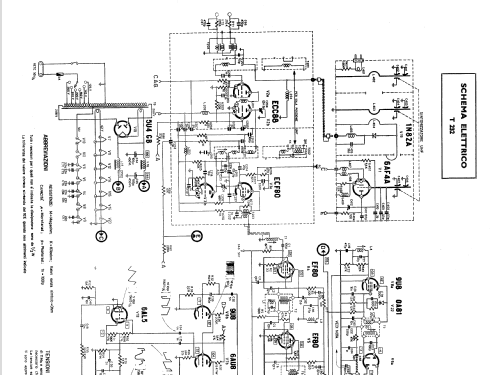

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 19

• Valves / Tubes
• 6AF4A ECC88 ECF80 EF80 6EM5 EF80 EF80 6AU8 9U8 PABC80 PL84 6C4 6AL5 6SN7GTA 5U4GB 6DQ6A 6AU4GTA DY80 23FP4

• Main principle
• Superheterodyne (common)

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Alternating Current supply (AC) / 125; 145; 160; 220; 240: 280 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: T232 - Voxson, FARET F.A.R.E.T.; Roma

• Shape
• Tablemodel, with any shape - general.

• Author
• Model page created by Eduard Abfalterer. See "Data change" for further contributors.

• Other Models

• Here you find 177 models, 147 with images and 98 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Voxson, FARET (F.A.R.E.T.); Roma
