Tanga NS Neo Giallo
Voxson, FARET (F.A.R.E.T.); Roma
- Country
- Italy
- Manufacturer / Brand
- Voxson, FARET (F.A.R.E.T.); Roma
- Year
- 1977–1980
- Category
- Car Radio, perhaps also + sound player/recorder
- Radiomuseum.org ID
- 334074

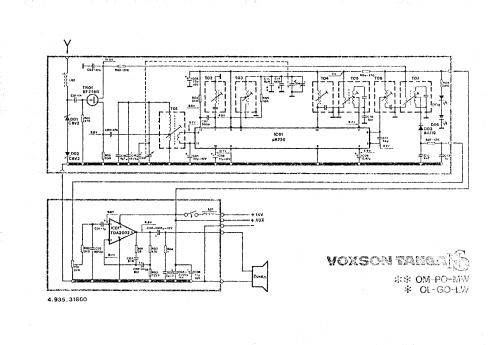

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 1
- Main principle
- Superhet with RF-stage
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Long Wave and/or Very Low Frequency (VLF).
- Power type and voltage
- Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Tanga NS Neo Giallo - Voxson, FARET F.A.R.E.T.; Roma
- Shape
- Chassis only or for «building in»
- Notes
-
La serie del 1980 "Tanga NS" comprendeva 4 modelli ognuno con una sola gamma di onda.
Il modello "Neo Giallo" era solo per Onde Lunghe.
Poteva funzionare in casa con apposita plancia di alimentazione.
- Mentioned in
- -- Original prospect or advert (Quattroruote, aprile 1980)
- Literature/Schematics (1)
- -- Schematic
- Author
- Model page created by Pier Antonio Aluffi. See "Data change" for further contributors.
