• Country
• Italy

• Manufacturer / Brand
• Voxson, FARET (F.A.R.E.T.); Roma

• Year
• 1962 ??

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 349636

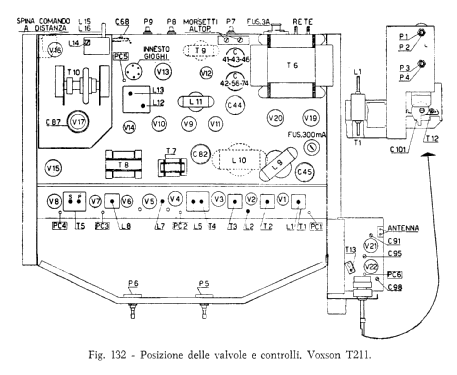

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 22

• Valves / Tubes
• 6BK7A 6U8 6CB6 6CB6 6U8 6U8 EL41 6AU6 6AU6 EABC80 6U8 12AU7 PCL81 6AQ5 6SN7 6C4 6CD6 PY81 EY86 5U4 5U4 21EP4

• Main principle
• Superhet with RF-stage

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 140; 160; 220 Volt

• from Radiomuseum.org
• Model: Televisore T211 - Voxson, FARET F.A.R.E.T.; Roma

• Notes

• Televisore in bianco/nero con sola VHF.
  Cinescopio da 21 pollici con deflessione 70°.
  Controllo a distanza del volume e della luminosità, a filo.
  Controllo di tono sull'audio.

• Mentioned in
• -- Schematic (“Televisori Commerciali” E. Costa U. Hoepli editore, vol. I, II edizione 1962.)

• Author
• Model page created by Pier Antonio Aluffi. See "Data change" for further contributors.
