• Country
• Italy

• Manufacturer / Brand
• Voxson, FARET (F.A.R.E.T.); Roma

• Year
• 1956/1957

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 119314

• Number of Tubes
• 4

• Valves / Tubes
• 1V6 1AH4 1AJ5 DL92

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Batteries / addl. power jack / 1.5 & 45 / ? Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 cm = 3.1 inch

• Power out
• 0.12 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

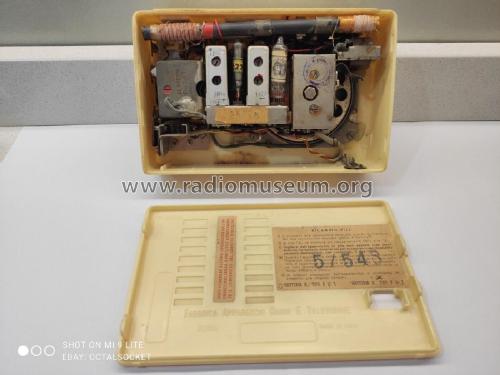

• Model: Vedette 509 - Voxson, FARET F.A.R.E.T.; Roma

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 160 x 100 x 50 mm / 6.3 x 3.9 x 2 inch

• Notes

• Prezzo senza alimentatore di rete: 29.300 Lire.

• Net weight (2.2 lb = 1 kg)
• 1.4 kg / 3 lb 1.3 oz (3.084 lb)

• Price in first year of sale
• 36,800.00 ITL

• Source of data
• Guida Pratica Antique Radio (1) 1999

• Mentioned in
• Catalogo ANIE (1956-57)

• Literature/Schematics (1)
• Antique Radio Magazine n.67, June-July 2005, page 10. Written in Italian.

• Author
• Model page created by Alessandro De Poi. See "Data change" for further contributors.

• Other Models

• Here you find 176 models, 146 with images and 98 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
