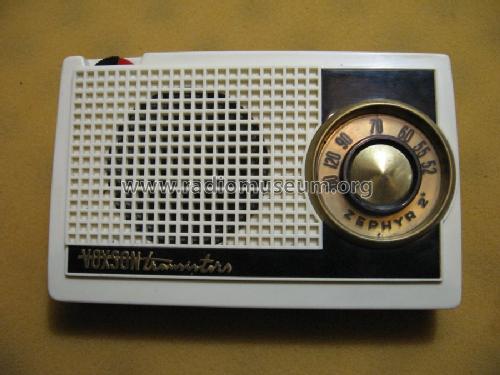

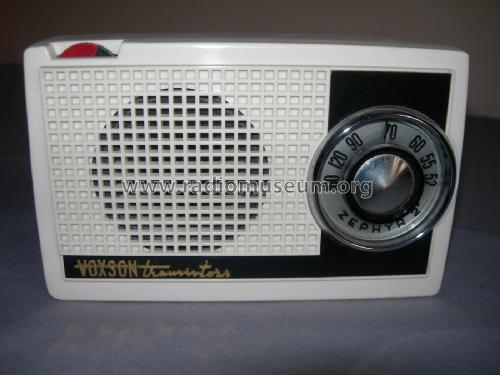

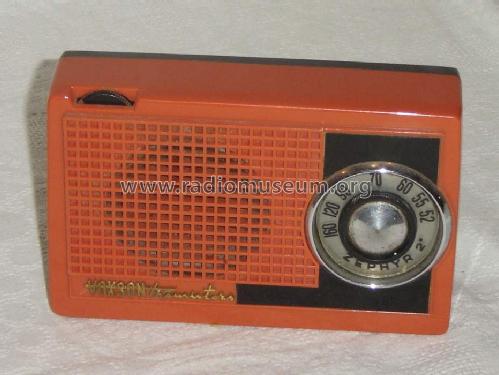

Zephyr 2 745
Voxson, FARET (F.A.R.E.T.); Roma
- Country
- Italy
- Manufacturer / Brand
- Voxson, FARET (F.A.R.E.T.); Roma
- Year
- 1959–1961
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 83041
Pubblicità Quattroruote - Dicembre 1959
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 6
- Main principle
- Superheterodyne (common)
- Tuned circuits
- 5 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Line / Batteries (any type) / 110-220 / 12 / 6 × 1,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Zephyr 2 745 - Voxson, FARET F.A.R.E.T.; Roma
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 160 x 100 x 40 mm / 6.3 x 3.9 x 1.6 inch
- Notes

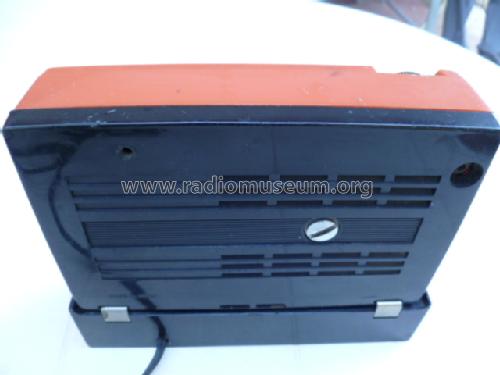

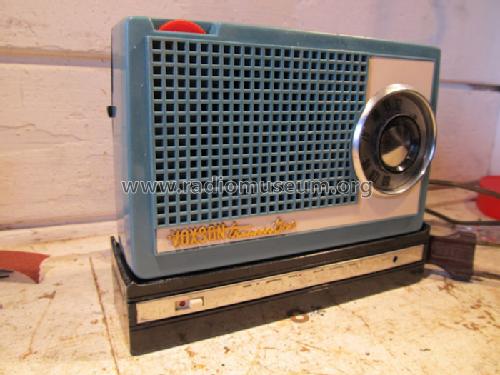

- Funzionante a batterie, in auto a 12 V con supporto "S. 745" in accoppiamento con altoparlante amplificato "B. 745", a rete con alimentatore "A. 745".
It can works with Battery/Car support/AC Supply unit, therefore it's a combined set which can be: car-radio, portable receiver, table model.
- Net weight (2.2 lb = 1 kg)
- 0.815 kg / 1 lb 12.7 oz (1.795 lb)
- Source of data
- Guida Pratica Antique Radio (1) 1999
- Mentioned in
- Pubblicità Quattroruote - Dicembre 1959

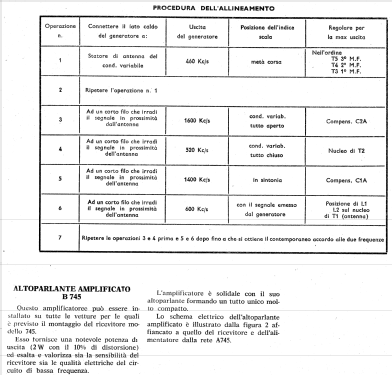

- Literature/Schematics (1)
- Antique Radio Magazine n.67, June-July 2005, page 10. Written in Italian.
- Author
- Model page created by Alessandro De Poi. See "Data change" for further contributors.
