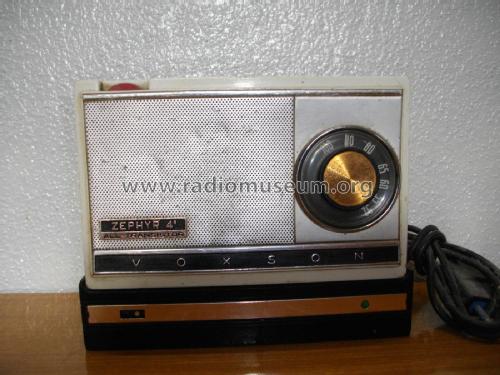

Zephyr 4 755 SE

• Country
• Italy

• Manufacturer / Brand
• Voxson, FARET (F.A.R.E.T.); Roma

• Year
• 1964 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 145595

• Picture
• Schematics

Previous Next

Previous Next

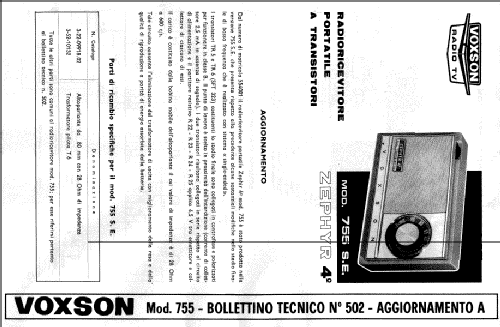

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 6

• Semiconductors
• SFT308 SFT307 SFT307 SFT353 SFT323 SFT323 SFD110 SFD106

• Main principle
• Superheterodyne (common); ZF/IF 460 kHz; 2 AF stage(s)

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / 6 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 cm = 3.1 inch

• Power out
• 1 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Zephyr 4 755 SE - Voxson, FARET F.A.R.E.T.; Roma

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 165 x 100 x 50 mm / 6.5 x 3.9 x 2 inch

• Notes
• Voxson Zephyr 4° All Transistor. Alimentazione AC con alimentatore A-755 opzionale.

• Net weight (2.2 lb = 1 kg)
• 0.650 kg / 1 lb 6.9 oz (1.432 lb)

• Source of data
• -- Original-techn. papers.

• Literature/Schematics (1)
• Antique Radio Magazine n.67, June-July 2005, page 10. Written in Italian.

• Author
• Model page created by Giorgio Costa. See "Data change" for further contributors.

• Other Models

• Here you find 176 models, 146 with images and 98 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Voxson, FARET (F.A.R.E.T.); Roma
