Monaural Control Unit Audiomaster 11a
W. & N. Electronics Ltd., London
- Country
- Great Britain (UK)
- Manufacturer / Brand
- W. & N. Electronics Ltd., London
- Year
- 1959 ??
- Category
- Audio Amplifier or -mixer
- Radiomuseum.org ID
- 260063
Audiomaster type 11a preamplifier
UK amplifier catalog ca. 1959
Hi-Fi News 1961
- Number of Tubes
- 4
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Power type and voltage
- Powered by external power supply or a main unit. / 220 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Metal case
- from Radiomuseum.org
- Model: Monaural Control Unit Audiomaster 11a - W. & N. Electronics Ltd.,
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 13.75 x 5.38 x 8 inch / 349 x 137 x 203 mm
- Notes
-
Audiomaster control unit for Audiomaster 11a.

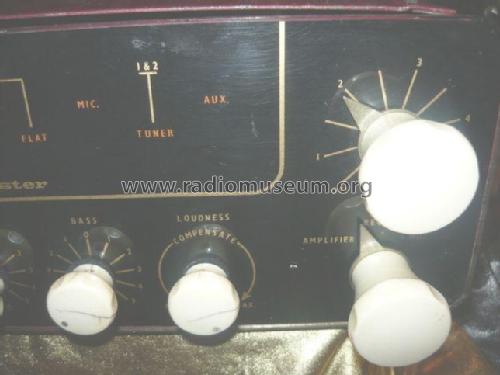

Inputs: pickup 8 mV, tape 1.8 mV, mic 1 mV, tuner 50 and 200 mV, aux 2 mV. 10 position selector, treble, bass, loudness, filter slope. Distortion 0.1%.
- Net weight (2.2 lb = 1 kg)
- 5 kg / 11 lb 0.2 oz (11.013 lb)
- Author
- Model page created by Michael Gnaedig-Fischer. See "Data change" for further contributors.
