Cannon Transistor Radio (Japan 611)

• Country
• Japan

• Manufacturer / Brand
• WACO; Japan

• Year
• 1979 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 245028

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 6

• Semiconductors
• 2SC945 or. 2SC454 2SC945 or. 2SC454 2SC945 or. 2SC454 2SC945 or. 2SC454 2SC945 or. 2SC458 2SA733 or. 2SA844 1N34 or. SD46

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Tuned circuits
• 4 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 cm = 2 inch

• Power out
• 1 W (0.28 W max.)

• Material
• Various materials

• from Radiomuseum.org
• Model: Cannon Transistor Radio - WACO; Japan

• Shape
• Design Radio or Novelty / Gadget - fancy or unusual shape.

• Dimensions (WHD)
• 250 x 125 x 150 mm / 9.8 x 4.9 x 5.9 inch

• Notes

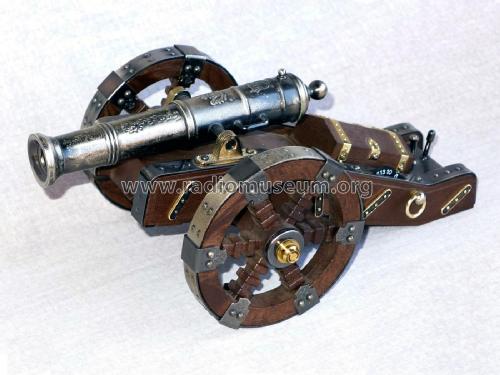

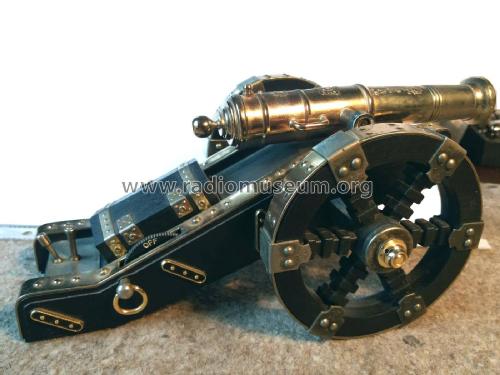

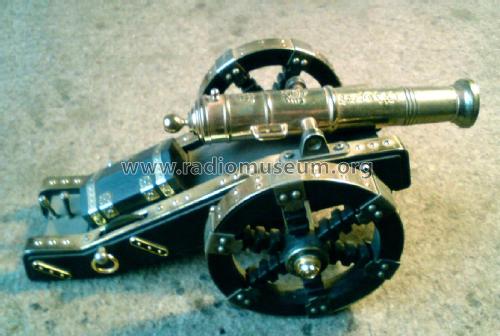

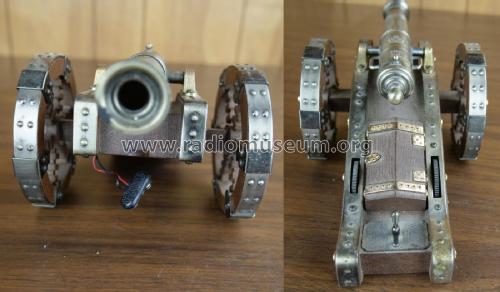

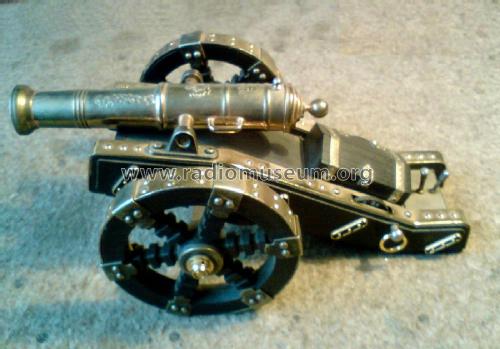

• 6 Transistor Radio in shape of an antique cannon.

  Cannoncino guerra di secessione. Legno e metallo. Fondo in plastica.

  Made in Japan 611

• Net weight (2.2 lb = 1 kg)
• 0.320 kg / 0 lb 11.3 oz (0.705 lb)

• Source of data
• -- Original-techn. papers.

• Literature/Schematics (1)
• - - Manufacturers Literature

• Author
• Model page created by Spartaco Gori. See "Data change" for further contributors.
