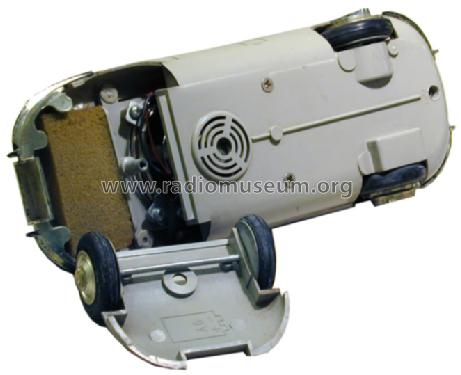

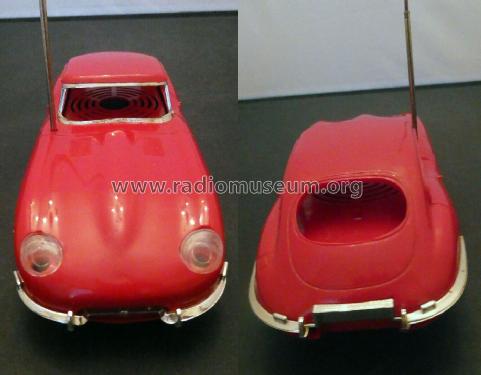

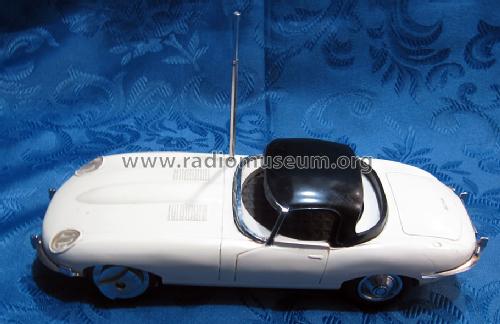

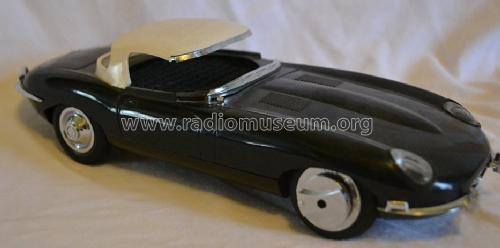

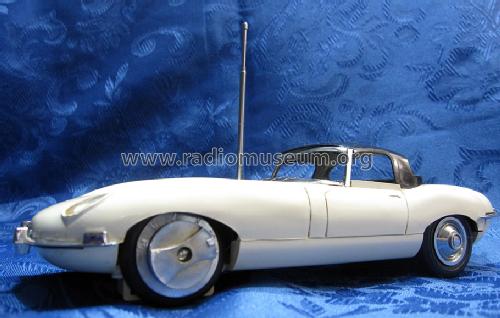

Jaguar E Type , car model prototype

WACO; Japan

Data
Forum
Pictures
Collections

  • Year
  • 1963
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 178958

 Technical Specifications

  • Number of Transistors
  • 6
  • Semiconductors
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Dry Batteries / 1 x 9 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2.25 inch = 5.7 cm
  • Power out
  • 0.15 W (max.)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Jaguar E Type , car model prototype - WACO; Japan
  • Shape
  • Design Radio or Novelty / Gadget - fancy or unusual shape.
  • Dimensions (WHD)
  • 220 x 60 x 80 mm / 8.7 x 2.4 x 3.1 inch
  • Notes

  • Jaguar E AM Radio prototype which was ordered from Waco in 1962 trying to obtain a large premium order but the deal failed.

    Tuning Range:
    AM 540 - 1600 kHz
    Ferrite Bar antenna


  • Net weight (2.2 lb = 1 kg)
  • 0.3 kg / 0 lb 10.6 oz (0.661 lb)
  • Author
  • Model page created by Eckhard Wegner. See "Data change" for further contributors.
