• Country
• Netherlands

• Manufacturer / Brand
• Waldorp, N.V. Ned. Instrumentenfabriek, Den Haag

• Year
• 1940

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 84275

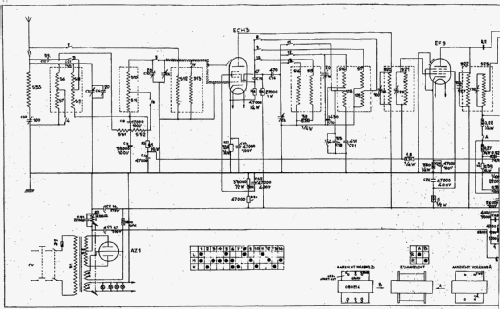

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• ECH3 EF9 EBL1 AZ1 EFM1

• Main principle
• Superheterodyne (common); ZF/IF 128 kHz

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110-245 Volt

• Loudspeaker
• Permanent or electro-dynamic (moving coil), system not known yet.

• Material
• Wooden case

• from Radiomuseum.org
• Model: 215 - Waldorp, N.V. Ned.

• Shape
• Tablemodel, low profile (big size).

• Notes
• Skala oben pultförmig. Weltzeituhr und Karte (siehe Beschreibung in verschiedenen Forumbeiträgen beim Modell 168).

• Price in first year of sale
• 215.00 FL

• Mentioned in
• Technisch- Commercieel - Radio Vademecum Staleman

• Author
• Model page created by Folkert Rothe. See "Data change" for further contributors.
