• Country
• Netherlands

• Manufacturer / Brand
• Waldorp, N.V. Ned. Instrumentenfabriek, Den Haag

• Year
• 1937

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 166676

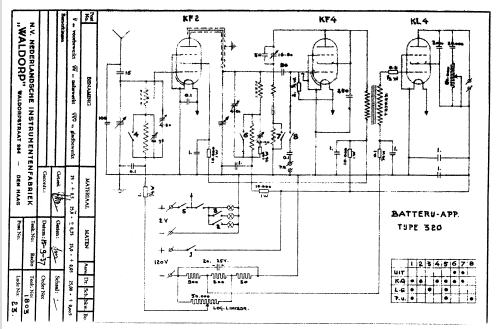

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes
• KF2 KF4 KL4

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Storage and/or dry batteries / 2 & 120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 320 - Waldorp, N.V. Ned.

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Price in first year of sale
• 125.00 Hfl

• Source of data
• -- Original-techn. papers.

• Author
• Model page created by Gidi Verheijen. See "Data change" for further contributors.

• Other Models

• Here you find 140 models, 92 with images and 42 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
