- Country
- United States of America (USA)
- Manufacturer / Brand
- Walgreen Co., Aetna Radio Corp.; Chicago (IL)
- Year
- 1936 ??
- Category
- Car Radio, perhaps also + sound player/recorder
- Radiomuseum.org ID
- 64724
-
- Brand: Aetna

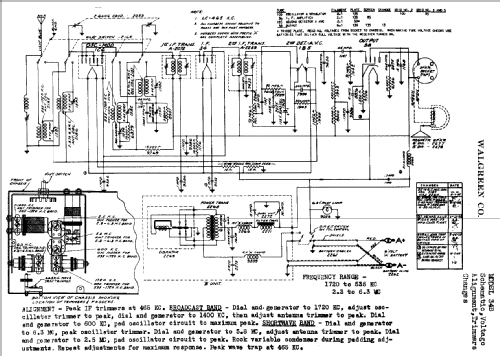

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- Superheterodyne (common); ZF/IF 465 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- Storage Battery for all (e.g. for car radios and amateur radios) / 6 Volt
- Loudspeaker
- Magnetic loudspeaker (reed) generic.
- from Radiomuseum.org
- Model: 34B - Walgreen Co., Aetna Radio Corp
- Notes
- Vibrator for +B.
- External source of data
- Ernst Erb
- Circuit diagram reference
- Rider's Perpetual, Volume 10 = 1939 and before
