Gamma Merkur III (3) 12-V

Wandel & Goltermann; Reutlingen

Data
Forum
Pictures
Collections

  • Year
  • 1965–1967
  • Category
  • Car Radio, perhaps also + sound player/recorder
  • Radiomuseum.org ID
  • 26276
    • alternative name: Wago Wandel & Goltermann

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 12
  • Main principle
  • Superheterodyne (common); ZF/IF 460/10700 kHz
  • Tuned circuits
  • 8 AM circuit(s)     13 FM circuit(s)
  • Wave bands
  • Broadcast, Long Wave and FM or UHF.
  • Power type and voltage
  • Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 12 W (unknown quality)
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Gamma Merkur III [12-V] - Wandel & Goltermann;
  • Shape
  • Chassis only or for «building in»
  • Notes

  • Wandel und Goltermann Gamma Merkur III, 12-V-Ausführung.

    Anschlüsse für Lautsprecher (4, 8, 12 Ω), Kontroll-LS (60 Ω), Mikrofon, TA, TB; Mikrofondurchsagen haben Vorrang, bei Ausfall des Empfangs- und Bedienteils ist Mikrofonbetrieb noch möglich.

    Zwei Metallgehäuse; Bedien- und Empfangsteil 235×160×166 mm, 3,6 kg; Stromversorgungsteil 182×112×118 mm, 2,5 kg.

  • Net weight (2.2 lb = 1 kg)
  • 6.1 kg / 13 lb 7 oz (13.436 lb)
  • Price in first year of sale
  • 890.00 DM

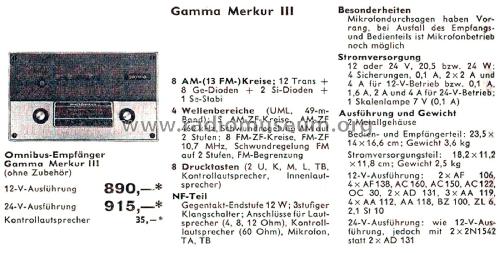

  • External source of data
  • erb
