• Country
• Germany

• Manufacturer / Brand
• Wandel & Goltermann; Reutlingen

• Year
• 1961 ?

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 224635

• • alternative name: Wago Wandel & Goltermann

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes
• 5876

• Main principle
• Transmitter

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Powered by external power supply or a main unit. / DC 50 - 300 & AC 6,3 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org
• Model: Leistungsoszillator - Power Oscillator 450..790MHz LO-450 - Wandel & Goltermann;

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 215 x 215 x 250 mm / 8.5 x 8.5 x 9.8 inch

• Notes

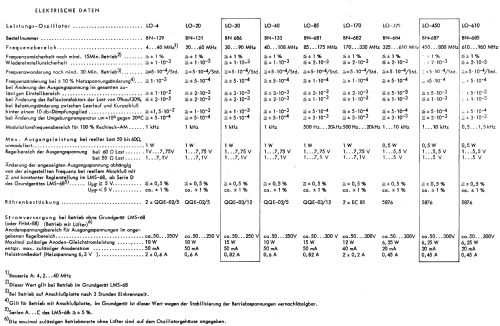

• Frequenzbereich 450 - 800 MHz

  P_max 0,5 W.

  Einschub passend zum Wandel & Goltermann Leistungsmesssender LMS-68.

• Source of data
• -- Original-techn. papers.
