NF-Verstärker Trabant 2 BN812
Wandel & Goltermann; Reutlingen
- Country
- Germany
- Manufacturer / Brand
- Wandel & Goltermann; Reutlingen
- Year
- 1975 ??
- Category
- Audio Amplifier or -mixer
- Radiomuseum.org ID
- 242203
-
- alternative name: Wago Wandel & Goltermann
- Number of Transistors
- 1
- Semiconductors
- BCY59
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Power type and voltage
- Storage Battery for all (e.g. for car radios and amateur radios) / 24 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Material
- Metal case
- from Radiomuseum.org
- Model: NF-Verstärker Trabant 2 BN812 - Wandel & Goltermann;
- Shape
- Chassis only or for «building in»
- Dimensions (WHD)
- 175 x 48 x 72 mm / 6.9 x 1.9 x 2.8 inch
- Notes
-

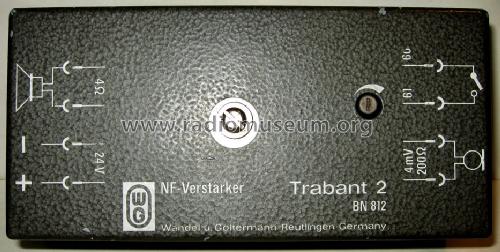

(Fahrzeug-?) Einbau- NF-Verstärker; Mikrofoneingang 4mV, 200Ohm; Schalteingang; Lautsprecherausgang 4Ohm; Pegelregler; alle Anschlüsse in 6,3mm Flachsteckausführung; Befestigungsbohrungen im Gehäuseboden
Aluminiumgehäuse dient als Kühlkörper für Verstärker-IS; eingebaute Feinsicherung T1A
- Net weight (2.2 lb = 1 kg)
- 0.5 kg / 1 lb 1.6 oz (1.101 lb)
- Author
- Model page created by Michael Mischke. See "Data change" for further contributors.
