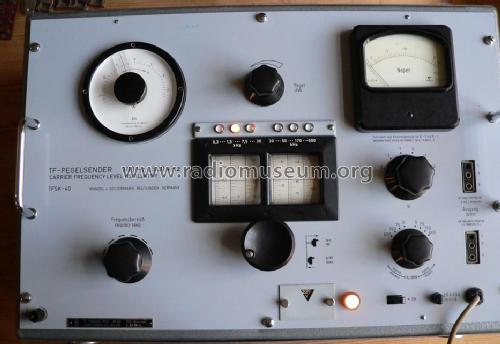

TF-Pegelsender TFSK-40
Wandel & Goltermann; Reutlingen
- Country
- Germany
- Manufacturer / Brand
- Wandel & Goltermann; Reutlingen
- Year
- 1959 ??
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 249845
-
- alternative name: Wago Wandel & Goltermann
- Number of Tubes
- 6
- Valves / Tubes
- C3m
- Main principle
- Transmitter
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 110; 220 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org
- Model: TF-Pegelsender TFSK-40 - Wandel & Goltermann;
- Shape
- Boatanchor (heavy military or commercial set >20 kg).
- Dimensions (WHD)
- 520 x 360 x 200 mm / 20.5 x 14.2 x 7.9 inch
- Notes
-
Sine Wave Transmitter, range 300 Hz - 600 kHz.
Carrier frequency level oscillator (Träger Frequenz Oszillator).
Output impedances 0, 75, 150, or 600 Ohm
2 parallel outputs, meter in Neper.
Special fine tuning control in ranges from 50 kHz - 600 kHz.Probably accompanied by a receiver in same frequency range.
Predecessor of the TFPS-75 and TFPM-76 set.
- Net weight (2.2 lb = 1 kg)
- 17 kg / 37 lb 7.1 oz (37.445 lb)
