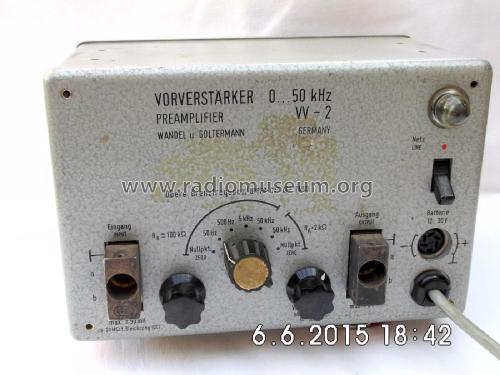

Vorverstärker VV-2 BN 224
Wandel & Goltermann; Reutlingen
- Country
- Germany
- Manufacturer / Brand
- Wandel & Goltermann; Reutlingen
- Year
- 1962 ??
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 269947
-
- alternative name: Wago Wandel & Goltermann
- Number of Transistors
- 9
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Metal case
- from Radiomuseum.org
- Model: Vorverstärker VV-2 BN 224 - Wandel & Goltermann;
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 191 x 125 x 130 mm / 7.5 x 4.9 x 5.1 inch
- Notes
-
Vorverstärker 0...50KHz VV-2 BN224
von Hersteller Wandel und Goltermann.
Eingangsspannung max. +/- 90mV.
Obere Grenzfrequenz einstellbar auf 50Hz, 500Hz, 5kHz und 50kHz an Ra>=100kOhm, oder 50kHz an 2kOhm.
Eingebautes Modul Gleichspannungsverstärker Typ BN 245.
1 Diode unknown, 1 Z-Diode unknown, 1 Selen-Gleichrichter unknown.
- Net weight (2.2 lb = 1 kg)
- 3.1 kg / 6 lb 13.3 oz (6.828 lb)
- Author
- Model page created by Hans-Werner Ellerbrock. See "Data change" for further contributors.
