Omnibus-Empfänger Gamma A
Wandel & Goltermann; Reutlingen
- Country
- Germany
- Manufacturer / Brand
- Wandel & Goltermann; Reutlingen
- Year
- 1956/1957
- Category
- Car Radio, perhaps also + sound player/recorder
- Radiomuseum.org ID
- 20958
-
- alternative name: Wago Wandel & Goltermann
Funk-Technik 7/1956, S. 183

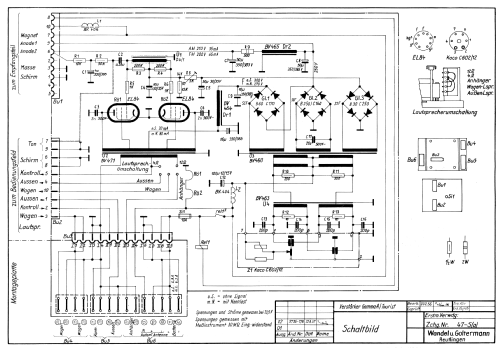

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 11
- Main principle
- Superheterodyne (common); ZF/IF 460 kHz
- Tuned circuits
- 8 AM circuit(s) 12 FM circuit(s)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- Storage and/or dry batteries
- Material
- Metal case
- from Radiomuseum.org
- Model: Omnibus-Empfänger Gamma A - Wandel & Goltermann;
- Price in first year of sale
- 1,075.00 DM
- External source of data
- Erb
- Source of data
- HdB d.Rdf-& Ferns-GrH 1956/57 / Radiokatalog Band 2, Ernst Erb
